PHOTOVOLTAIC SOLAR RIBBON

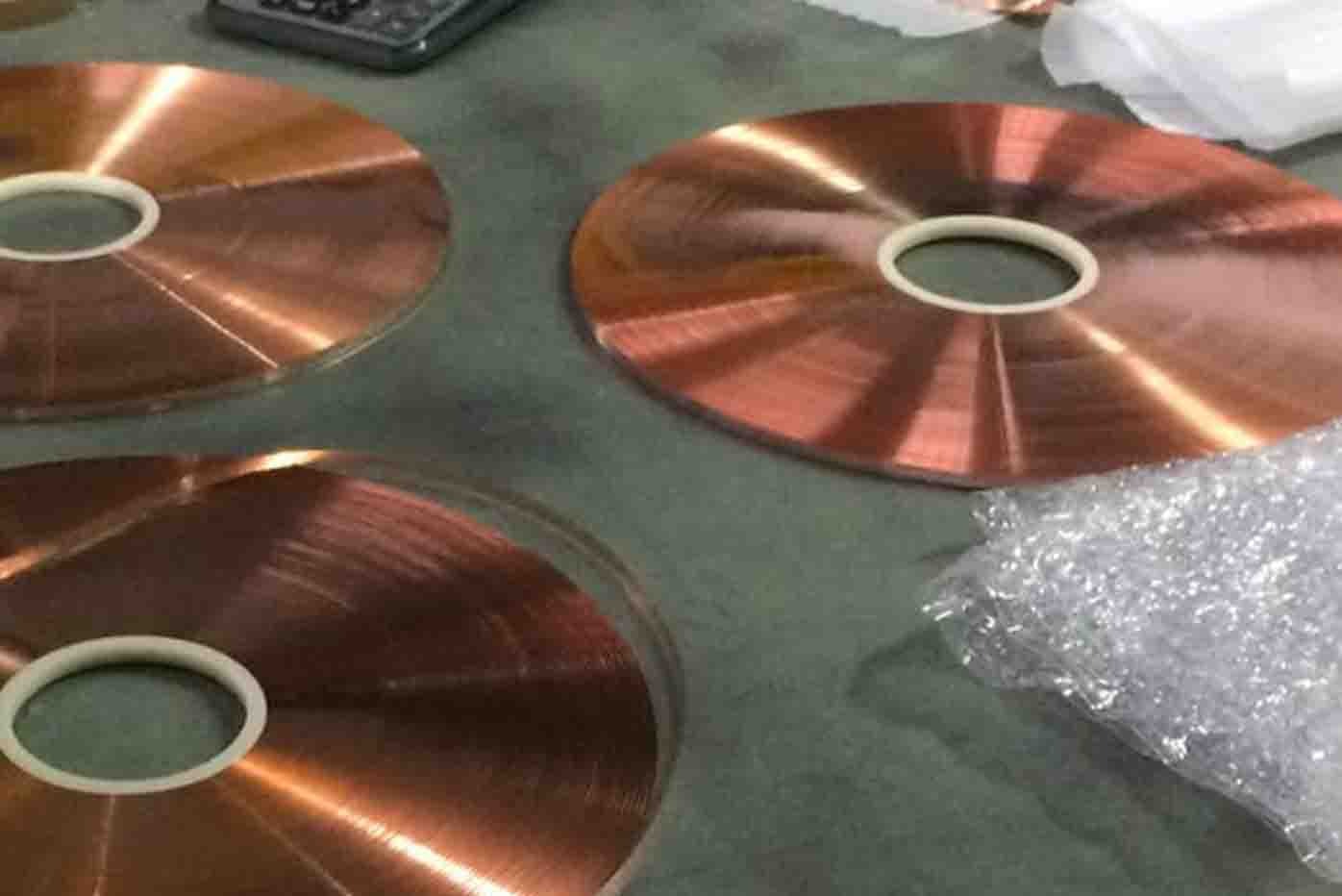

Copper-based flat ribbon is employed for electrical connections between silicon cells and for current transport in both crystalline silicon and thin-film photovoltaic modules. This solar ribbon is crafted from oxygen-free copper, featuring remarkable electrical conductivity, while also ensuring reliable elongation and yield strength. flexibility helps minimize cell breakages and reduces electrical resistance in photovoltaic modules

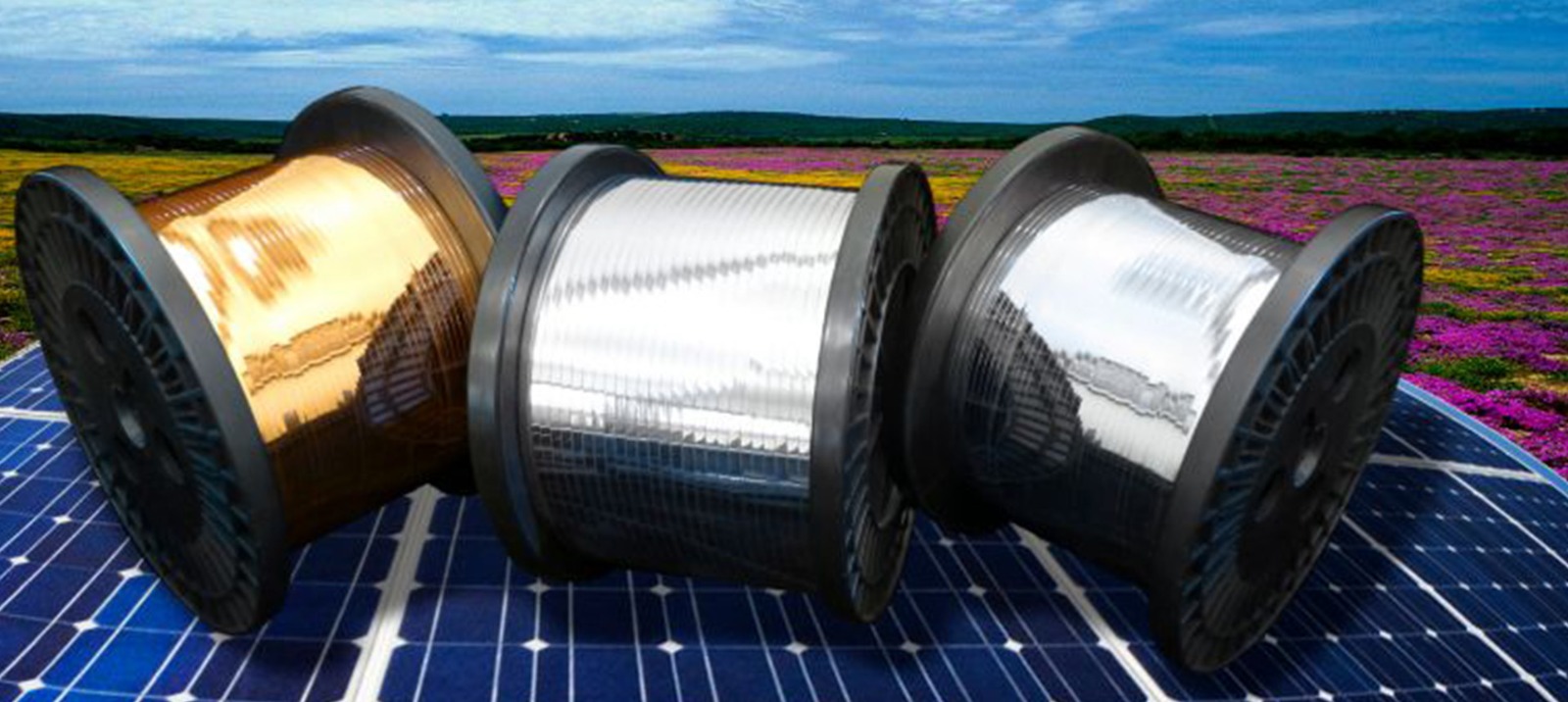

PV RIBBON

We offer performance-driven PV Ribbons that has been exclusively designed to meet the rigorous requirements of the solar industry. These ribbons are characterized by their excellent uniformity and excessive productivity.

TECHNICAL DETAILS :

• Product : Solar Bus Bars, PV Ribbon
• Material: Copper + Tin alloy SnPb 60/40
• Copper Thickness : 0.05~1.0mm, tolerance + 0.003~0.005mm
• Width: 3.0mm~6mm,tolerance +0.03~0.05mm
• Edge Type : Natural Round Edges
• Coating Thickness: 15-25 um per side
• Conductivity: 100%
• Spool Type : PLS 4, HKV 160,10 S
• Condition : Elongation > 30 %, Yield Strength < 145 Mpa, Tensile Strength 160-190 Mpa
